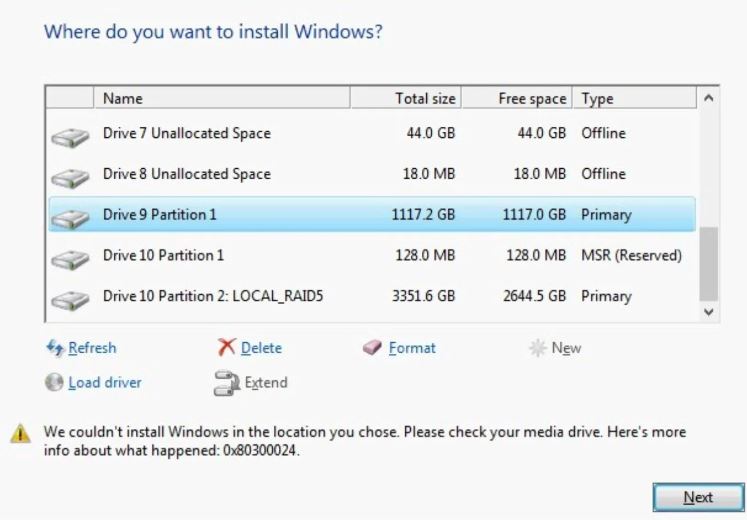

Do you know How to Fix ‘Error 0x80300024 When Installing Windows‘ issue? Error 0x80300024 is not limited to a certain version of Windows, so it can happen during installation on any of them. Error 0X80300024 can happen on any version of Windows. The error code 0x80300024 shows up during the installation of Windows and means there are problems with the installation location that was chosen. It means that the installation process failed because of issues with the location that was picked. Most of the time, these errors happen because the installation media doesn’t work with the current boot mode or partition scheme.
Windows can start up in either UEFI or Legacy boot mode, which are the same thing but for GPT and MBR partition schemes. At the moment, most methods can make a Windows installation disc that works with GPT systems, but an old disc may still work with an MBR-based system. These media will only install Windows with a boot mode and partition that are compatible, so you need to figure out why there are conflicts to how to Fix ‘Error 0x80300024 When Installing Windows’ issue.
What are the causes of Error 0x80300024?
The error code 0x80300024 shows up on computers when they try to install any version of the Windows operating system. You will also see the message “Windows is unable to install to the selected location” along with the error code 0x80300024. If you want to know more information about this issue so you can visit Microsoft Official Website.
This error code basically means that there is a problem with the disk, partition, or volume where you want to install Windows. Those of you who are getting the same error code and don’t know how to fix it should read this guide. Here, we’ll talk about a few fixes that seem to have fixed the problem for people who were having it.
What is Error 0x80300024 When Installing Windows issue?
- One of the most common reasons for “Error 0x80300024” is that the disk you are trying to install Windows on already has partitions on it. These partitions could have been made by a different operating system or an earlier version of Windows. Windows might have trouble finding the right partition to install the new OS because of this.
- Incorrect Disk Configuration: The disk may be in a format that Windows doesn’t understand. This could happen for a number of reasons, such as the disk not being detectable during installation because it was set up incorrectly.
- Problems with the Installation Media: The installation media may have problems that cause problems during the installation process. If the USB drive or DVD that you are using to install Windows is damaged or has mistakes on it, the installation will fail.
- Broken Hard Drive: An installation error like “Error 0x80300024” can also be caused by a hard drive that isn’t working right or is broken. It might not be possible to install something if the hard drive has bad sectors or other physical problems.
- Settings for the BIOS or UEFI: If you don’t set the SATA mode or secure boot settings correctly in the BIOS or UEFI, it can cause problems during installation. This can also happen if the boot sequence in your BIOS is wrong.
Fix ‘Error 0x80300024 When Installing Windows’ issue
Use DiskPart
- During setup, find the System partition and make a note of it.
- Type “Diskpart,” then press the Shift and F10 keys together.
- Type List Disk to see a list of all the partitions.
- Next, type “Select Disk 1.” Change “1” to the number of the partition.
- Press “Enter” after typing “Clean.”
Set Target Hard Drive at the Top of the Boot Order
- Start up your computer.
- To get into your computer’s BIOS setup, press any of the F1, F2, or Del keys while it’s starting up. You can check your computer’s manual to see which key you need to press to get into the BIOS if these keys don’t work.
- Look for your computer’s Boot configuration or order in the BIOS. It might be on the Boot tab of the BIOS.
- Now, put the hard drive where you want to install Windows at the very top of the list. Put it at the top if it’s not there already.
- Don’t forget to save your changes before leaving BIOS.
Replace the Hard Drive
- If you have tried all of the above solutions and the problem still persists, there may be a problem with your hard disk drive.
- It is possible to get the 0x80300024 error while installing Windows if you are using a broken hard drive.
- In this case, the only thing you can do is get a new hard drive substitute.
- Try to install Windows again after you’ve changed the hard drive.
- The installation error should no longer show up now.
Format Installation Location
- Put in Windows installation media that can be used to start the computer up again.
- On the BIOS screen, choose to boot from the bootable Windows installation media that you inserted.
- Now, set your language, keyboard layout, and other preferences.
- When asked what kind of Windows installation you want, pick the Custom (advanced) option.
- Click on the “Drive options” link on the next page.
- Now, pick the part of the hard drive where you want to put Windows.
- Select “Format” from the menu.
- After you’re sure you want to do something, wait until the hard drive partition is completely formatted.
- Press the “Next” button.
Remove Unnecessary Hard Drives
- If your computer is hooked up to more than one hard drive, you might get the error message “Windows could not be installed.”
- The reason for this is that when you try to install Windows on one of these drives, it gets stuck on error code 0x80300024 because of other disk drives that are trying to install at the same time.
- There are hard drives that you should not install Windows on. If this sounds like you, then get rid of them all.
- Now, try to install Windows again to see if the problem.
Conclusion
If making changes to the hardware and system hasn’t fixed the problem, it’s time to check to see if the issue is with the hard drive itself. You can do this by starting the installation process over on a different hard drive. Installing things wrong is annoying, but luckily it’s not impossible to fix. We trust that the above solutions will help you quickly fix the installation error code 0x80300024. If the problem keeps happening, you should talk to the Microsoft support team for help.
Questions and Answers
If you get the message “Windows cannot be installed on this disk. If it says “The selected disk is of the GPT partition style”, it means that your computer is currently running in legacy BIOS. For UEFI to work, you must first check in BIOS to see if the firmware supports it, and then switch to it if it’s there.
Make sure that the installation USB or DVD is not broken or corrupted. This is the hardware you need to make sure it works with Windows 10. Make sure that the processor, RAM, and storage space can work together. Update drivers for hardware: Put in the newest drivers that work with Windows 10.
You can use an SSD and choose either MBR or GPT without any problems. In any case, you should use GPT instead, which is the newer standard, on any UEFI-based computer. But MBR is the only way to boot from a disk when you have an SSD and a computer that runs BIOS.
